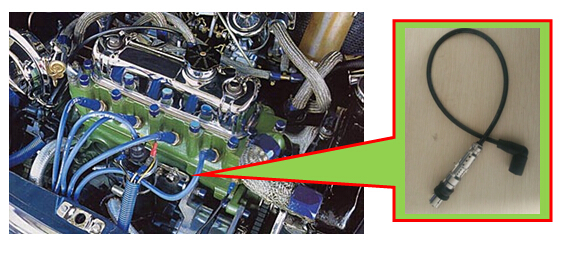

High Voltage Distributor Cable , linking Spark Plug and Ignition Coil in Car Engine System

1. Product features:

• Insertion and removal forces: 20N-70N
• Withstand voltage: ≥30KV
• Connector ends one: Straight part with shield, 5KΩ±20%
• Connector ends two: Bended part without shield,1KΩ±20%
• Tensile strength of the cable and terminal: ≥100N

2. Cable properties:

• Cable tensile strength: ≥230N
• Shore hardness: 75±3 SH
• Diameter of cable: 7±0.3mm
• Usage temp range: -20℃-155℃

3. Standard:

• ISO 6856
• ISO 3808

4. Customer:

• JANMOR

5. Description:

• The product is called auto high voltage ignition wire set, also called points cylinder line or distributor cable.
• One end of high voltage ignition cable is the terminal connecting spark plug and dustproof insulating boot, the other is the terminal connecting ignition coil and dustproof insulating sheath.
• Usage temp of the product is -20℃~155℃.
• Appearance of cable:smooth and flat surface, uniform color, clear writing, and no defect
• Lifetime is not less than 50,000km or 3 years.
• The product can be designed and developed according to customer’s requirements.

6. Applications:

• The product applies to the ignition system of auto engine.
